All-in-One – Electronic controller for hot air pellet stoves Print datasheet

Electronic controller for hot air pellet soves combining display, electronic control circuitry and power supply in a single product
Main technical specifications
  • Intuitive: clear and immediately intelligible graphic interface
  • Complete: On/off, regulation of room temperature and programming
  • Intuitive and easy-to-read display
  • Minimal design with ABS panel allowing customization
  • PC software for parameter settings configuration
  • 3 TRIACs
  • 1 relay
  • 6 inputs
  • Input for external thermostat as standard
Applications

Hot air pellet stoves

Description

The All-in-One controller for pellet stoves combines a modern control panel with a display, all the necessary electronic control circuitry and the relative power supply in a single package. The simplified installation with the handy fixing brackets and the wiring with plug-in connectors allows a significant reduction of installation times by 50%.

All-in-One can be customised upon request (subject to MOQs).

Models available

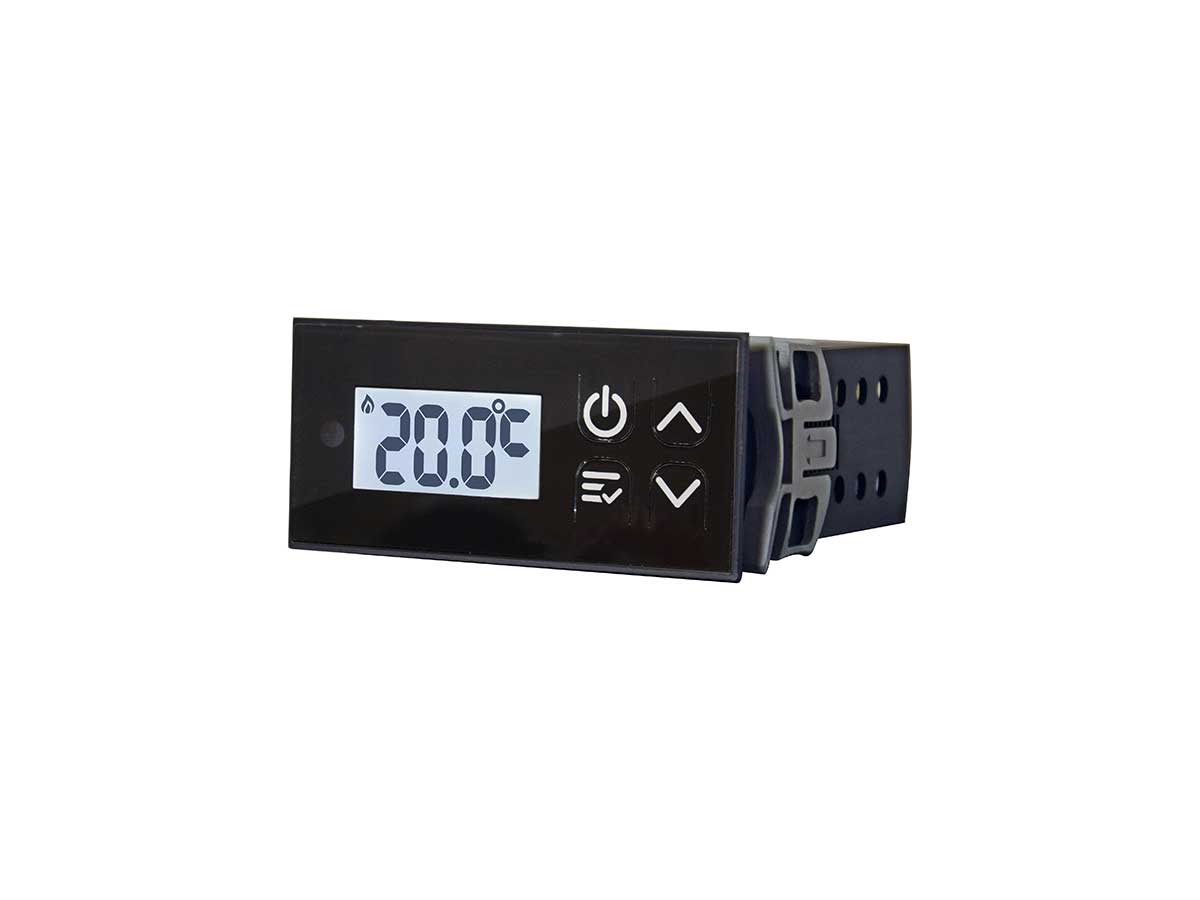

Image Code Description
PFHPCP940001* All-in-One with thermoformed opaque polyester 0.2 mm
PFHPCP940002* All-in-One with rigid gloss polyester, 1 mm, with contoured keys

*Note: OEM product, customisable upon request according to the pellet stove model. Subject to MOQs.

Specifiche tecniche
Power supply: 230 Vac -15% / +10%; 50-60 Hz Smoke extractor (Triac): max 300 W @ 230 Vac
Real Time Clock — perpetual calendar Room air fan (Triac): max 300 W @ 230 Vac
Rechargeable back-up battery Auger geared motor (Triac): max 300W @ 230Vac
Room temperature probe NTC 10 kΩ Data connections: TTL serial
Smoke sensor, thermocouple type J IR remote control receiver
Hall sensor, smoke extractor Integration with Rialto Smart Home: ZigBee 2.4GHz (smart versions)
Opto-isolated inputs (safetys/alarms) Internal temperature control probe with system shutdown
Input for external thermostat (voltage-free contact) Dimensions (L x H x D): 87 x 41 x 82 mm
Electric igniter: max 400 W @ 230 Vac Size of opening (L x H): 81 x 32 mm

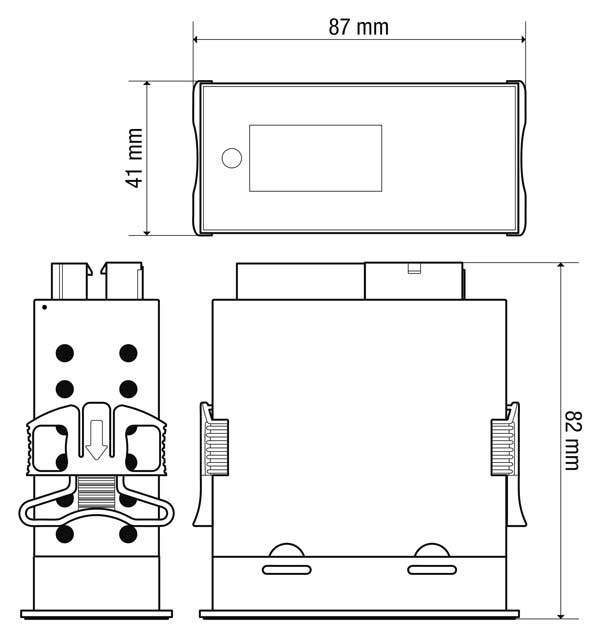

Mechanical drawings
