HD04-3D – Mechanical control panel Print datasheet

Mechanical control panel with 2.5″ LCD graphic display
Main technical specifications
  • Mechanical control panel with 6 keys and polycarbonate overlay
  • 2.5″ LCD graphic display (blue background, white characters)
  • IR receiver included
  • Customisations available: overlay, icons, customer’s logo (MOQ required)
Applications

Compatible with all types of pellet stove

Description

Mechanical user interface with polycarbonate overlay, 6 keys and LCD graphic display. HD04-3D is customisable on demand (subject to MOQ).

Models available
Image Code Description

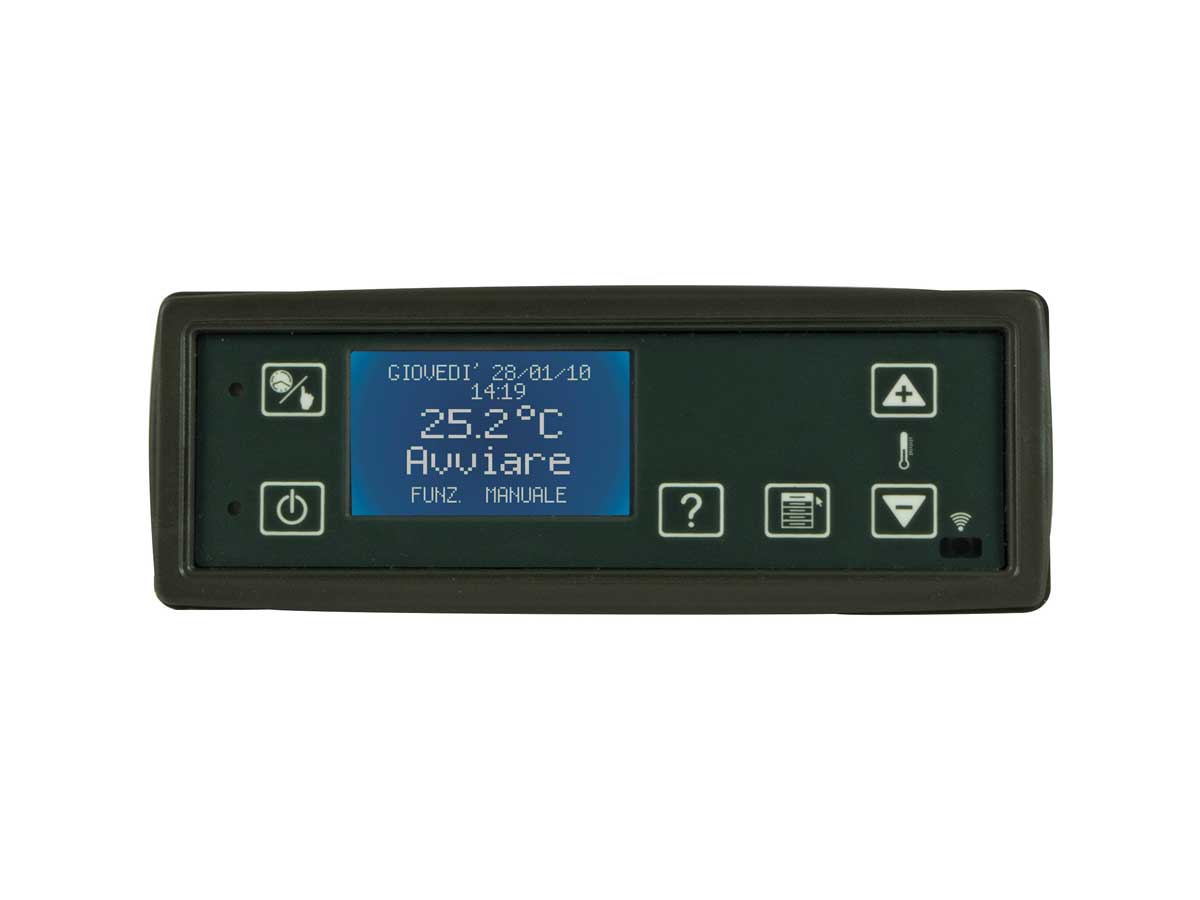

PFHPIM2C0001-HD04-3D PFHPIM2C0001 HD04-3D – Mechanical user interface
Technical specifications
Mounting Panel-mount fixing with screws
Dimensions (L x H x D) 172 x 62 x 28 mm
Hole size (L x H) 159 x 50 mm
Mechanical drawings
