TIR2 – ZigBee Modbus Relay Module Print datasheet

Sensor with input for NTC temperature probe, 2 digital inputs and 2 relay outputs
Main technical specifications
  • 2 digital inputs
  • 1 NTC probe input (probe not included)
  • 2 relay outputs
  • Sampling intervals and data transmission to the Gateway can be customised to increase battery life.
  • Customisable range of measurements for recording level alarm conditions: settings can be used by the supervisor to generate alarms and/or warnings (e.g. to check whether doors, windows, etc. are closed/open).
  • Routing functionality
  • External antenna for maximum efficiency
Applications
  • Building automation and industrial control systems
  • Energy monitoring and management
Description

Devices for acquiring the status of two ON/OFF digital outputs and NTC temperature probe readings; 2 configurable relay outputs for controlling external third party devices. In a wireless network, these devices regularly transmit acquired data to a ZigBee Gateway and serve as radio signal repeaters for nearby sensors.

All digital input status changes are sent to the Gateway irrespectively of sampling time.

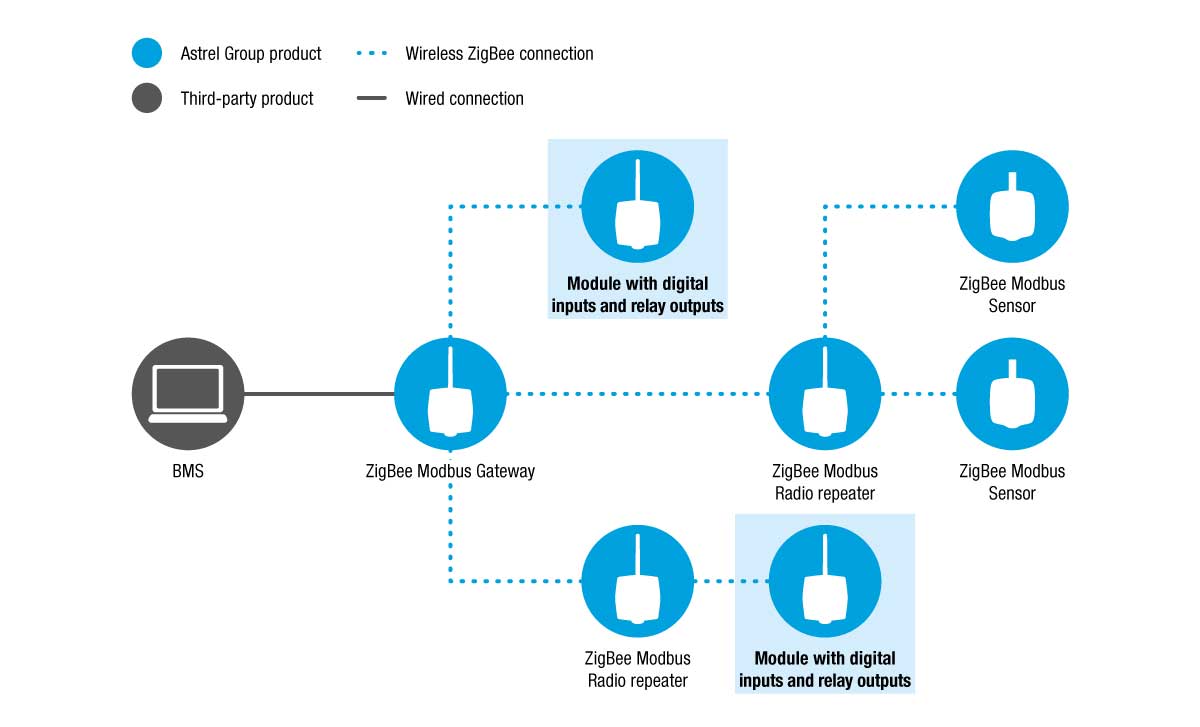

Connection diagram
Models available
Image Code Description
ZR-TIR2-EM ZR-TIR2-EM ZigBee module with 2 digital inputs, 1 NTC input, 2 relays
24 Vdc power; power supply with Italian standard 230 Vac / 24 Vdc plug included
ZR-TIR2-EM ZR-TIR2-EM-UK ZigBee module with 2 digital inputs, 1 NTC input, 2 relays
24 Vdc power; power supply with UK standard 230 Vac / 24 Vdc plug included
Technical specifications
General specifications Ember EM250 chip
Compatible with IEEE 802.15.4
Stack EmberZnet 3.5.x (ZigBee PRO)
Modbus / RTU
Radio specifications Frequency: 2405 MHz to 2480 MHz
Modulation: DSSS
Nominal transmission power: 1 mW (10 dBm)
Receiver sensitivity: -92 dBm
Antenna External antenna with 5 dB gain
Radio range: 100 m outdoor; 30 m indoor
Antenna connector SMA-RP antenna connector
Power supply 12 to 24 Vdc, 100 mA; 12 to 15 Vac, 50 to 60 Hz, 2.4 VA
Status display 3x indicator LEDs
Sampling interval 60 seconds (default)
Digital inputs (2x) Non-isolated inputs for voltage-free contacts
Closing current 0.01 mA
Use self-cleaning contacts
Input for NTC probe (1x) 103AT type (R25 = 10 KOhm; Beta = 3435K)
Measurement range: -50 to +100 °C
Read resolution: 0.1 °C
Read accuracy: ±1.0 °C
Linearised measurements in tenths of a degree
Relays (2x) 24 Vdc coil
250 V ± 5 A contacts
Measurements Detection of digital output status (0/1), temperature (°C)
Connections Push-in terminals (3.81 mm pitch)
Mounting Wall-fixing with screws
Ambient parameters Operating conditions: -10 to +60 °C; <80% R.H. n.c.
Storage conditions: -20 to +70 °C; <80% R.H. n.c.
Degree of protection IP51
Insulation Class II
Conformity ETSI EN 300 328; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 61000-6-2; EN 61000-6-3; EN 60950-1; EN 62479
Directives 2014/53/EU (RED) 2011/65/EU (RoHS) 2012/19/EU (WEEE) 1999/519/EC
Dimensions (L x H x D) 94 x 116 x 35 mm
Weight 125 g
Mechanical drawings
