TL – ZigBee Home Automation Temperature and light sensor Print datasheet

Battery-powered wireless ZigBee Home Automation sensor for monitoring temperature and light in outdoor environments

Main technical specifications
  • Measurement of luminosity and temperature
  • IP33 protection degree for outdoor/indoor installations
  • Magnetic key for network association/disassociation
  • Data transmission via wireless ZigBee Home Automation network
  • Surface coating for moisture protection
  • Special mechanical design for maximum accuracy in measurements and protection against external agents
  • Lithium battery power supply for long life (>5 years)
  • Double internal antenna – diversity configuration
Applications
  • Operation of darkening systems (blinds, roller blinds, awnings, etc.)
  • Operation of heating, ventilation and air conditioning systems,
  • Operation of lighting systems
Description

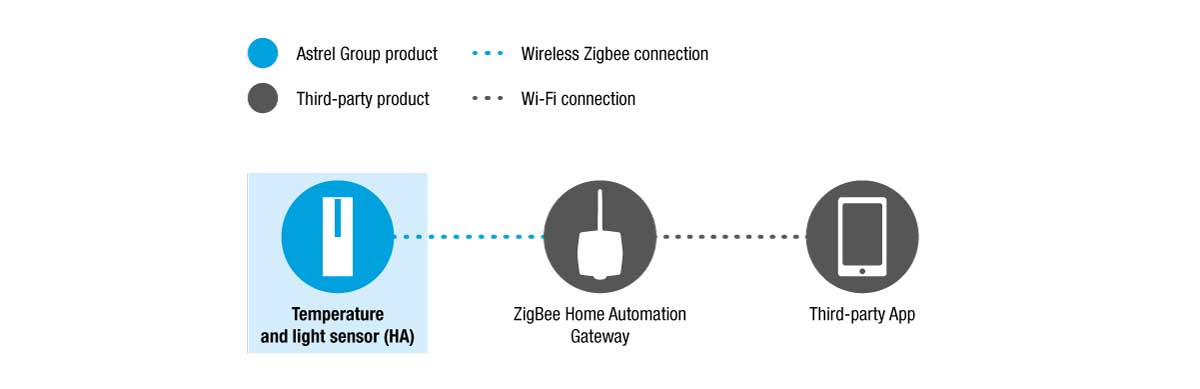

Battery-powered wireless ZigBee Home Automation sensor for monitoring temperature and luminosity. Once connected to a mesh ZigBee network, the device communicates the gathered data to the ZigBee Home Automation Gateway.

Being battery-powered, wireless and protected from water sprays (IP34), the TL sensor can be installed easily, both outdoors and indoors.

Models available
Image Code Description
ZED-TL-xx-01 ZED-TL-HA TL Temperature and light sensor – Home Automation
Technical specifications
General specifications Ember EM357 chip
Compatible IEEE 802.15.4
Stack EmberZnet 6.4.0.0
Home Automation (HA 1.2)
Radio specifications Frequency: 2405 MHz ÷ 2480 MHz
Modulation: DSSS
Nominal transmission power: +8 dBm
Receiver sensitivity: -95 dBm
Antenna 2x internal antenna with gain 1.5 dB
Radio range: max 30 m outdoors; 15 m indoors
Power supply Lithium Battery thionyl chloride (Li-SOCl2) 3.6 V ER26500 8500 mAh
Battery life: >5 years with data transmission every 60 s at 25 °C
Status display 1x status LED
Sampling interval 60 s default
Temperature sensor Sensor used: NTC 103AT (10 kΩ @ 25 °C)
Temperature sensor measurement range: -20 ÷ 60 °C
Measurement error: ±0.5 °C max
Resolution: 0.1 °C
Luminosity sensor Sensor used: VISHAY VEML6030
Range: 10 ÷ 100000 Lux
Measurement error: ±20%
Input Magnetic reed for network association/disassociation
Mounting Wall-fixing with screws
Ambient parameters Operating conditions: -30 ÷ +70 °C; <80% U.R. non-condensing
Storage conditions: -30 ÷ +70 °C; <80% U.R. non-condensing
Protection degree IP33
Insulation Class III
Conformità ETSI EN 300 328; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 61000-6-2; EN 61000-6-3; EN62368-1; EN62311;
Directives 2014/53/EU (RED) 2011/65/EU (RoHS) 2012/19/EU (WEEE) 1999/519/EC
Dimensions (L x H x D) 38.5 x 96 x 39.5 mm
Weight 120 g
Mechanical drawings
