ZigBee Modbus and HA Smart Plug Print datasheet

ZigBee wireless pass-through socket with built-in power meter, energy meter and relay for controlling electrical loads
Main technical specifications
  • Power relay with built-in energy meter
  • Max power: 13 A @ 230 Vac
  • Router function within the ZigBee wireless network
  • Stand-by killer function
  • Override function
Plug/socket models available
  • Schuko standard (EU)
  • British standard (UK)
Available protocols
  • Modbus
  • Home Automation
Description

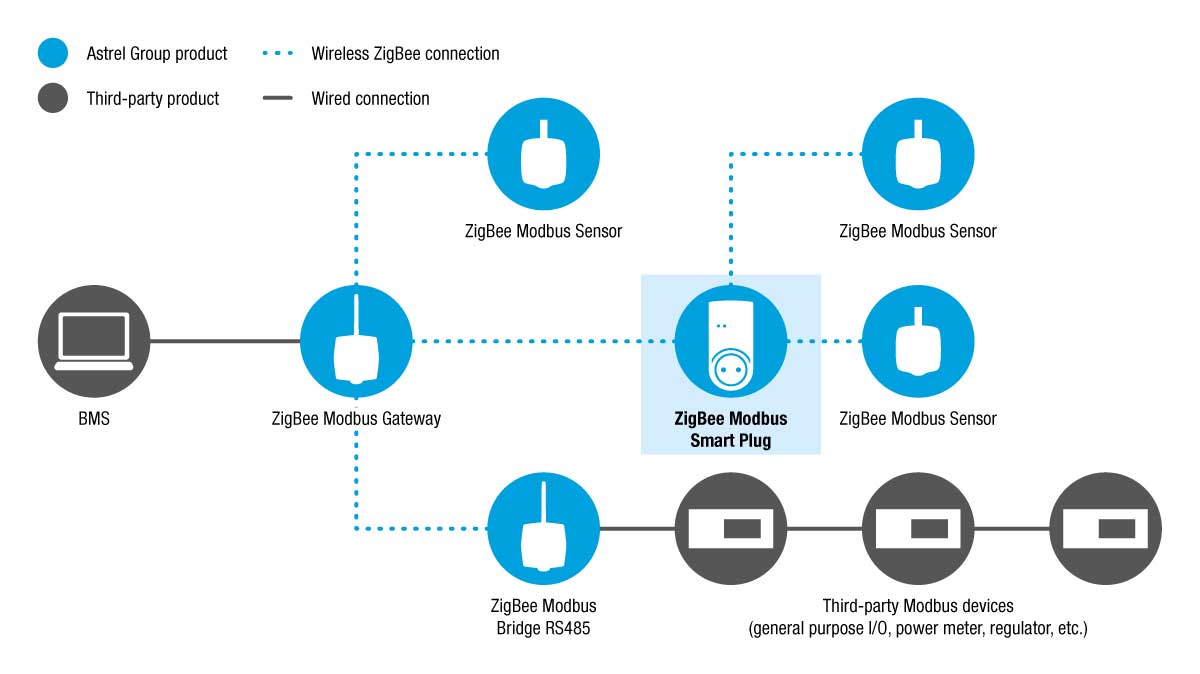

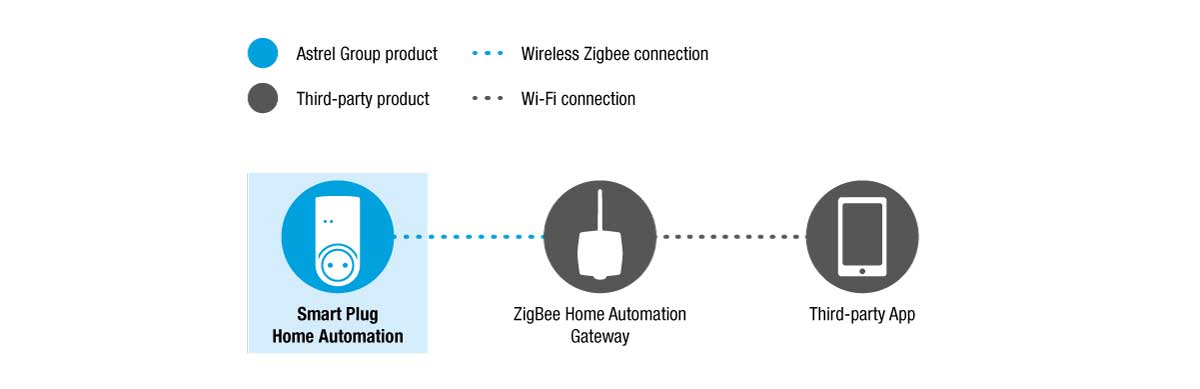

Wireless Smart Plugs can easily be used in home & building automation systems to program the activation of electrical loads and to measure their energy consumption. Measured data are transmitted regularly to a ZigBee network Gateway.

Models available
Image Code Description
ZR-PLUG-EU-xx ZR-PLUG-EU-M
ZR-PLUG-EU-HA
ZigBee wireless pass-through socket, Schuko standard (EU) – Modbus
ZigBee wireless pass-through socket, Schuko standard (EU) – Home Automation
ZR-PLUG-UK-xx ZR-PLUG-UK-M ZigBee wireless pass-through socket, British standard UK – Modbus
Technical specifications
General specifications Ember EM3587 chip
Compatible with IEEE 802.15.4
Stack EmberZnet 5.3.1 (ZigBee PRO)
ZR-PLUG-xx-M: Modbus / RTU
ZR-PLUG-xx-HA: Home Automation 1.2
Radio specifications Frequency: 2405 MHz to 2480 MHz
Modulation: DSSS
Nominal transmission power: 2 mW (3 dBm)
Receiver sensitivity: -95 dBm
Antenna Internal antenna with 0 dB gain
Radio range: 30 m outdoor; 15 m indoor
Power supply 90 to 240 Vac; 1 W; 50 to 60 Hz
Power Max current 13 A; 3.0 kW electrical load (pure resistive)
Status display 1x LED indicator
Sampling / data transmission time 20 seconds (default)
Measurements Active power [W]
Active energy consumption [Wh]
Outputs Socket for load control
Plug / socket models Schuko standard (EU); British standard (UK)
Ambient parameters Operating conditions: -0 to +50 °C; <80% R.H. n. c.
Storage conditions: -20 to +70 °C; <80% R.H. n. c.
Degree of protection IP30
Insulation Class II
Conformity Directives 2014/53/EU (RED) 2011/65/EU (RoHS) 2012/19/EU (WEEE) 1999/519/EC
ETSI EN 300 328; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 61000-6-2; EN 61000-6-3; EN 60950-1; EN 62479
Dimensions (L x H x D) 51 x 110.5 x 76 mm
Weight 160 g
Mechanical drawings
