ZigBee Modbus and HA Smart Switch Print datasheet

Wall-mounted ZigBee wireless devices with built-in power meter, energy meter for controlling electrical loads
Main technical specifications
  • Power relay with built-in energy meter
  • Max power: 13 A @ 230 Vac
  • Router function within the ZigBee wireless network
  • Stand-by killer function
  • Override function
  • Wall-fixing
Available protocols
  • Modbus
  • Home Automation
Description

Wireless Smart Switch wall sockets can easily be used in home & building automation systems to program the activation of electrical loads and to measure their energy consumption. Measured data are transmitted regularly to a ZigBee network Gateway.

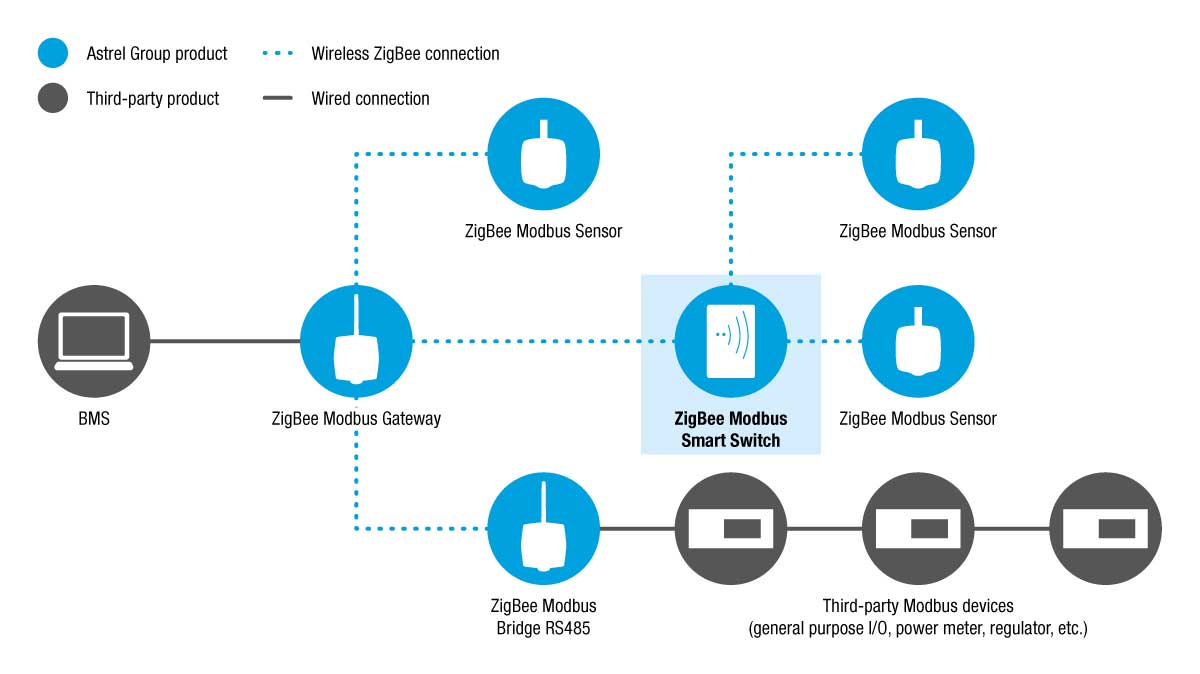

Modbus version connection diagram

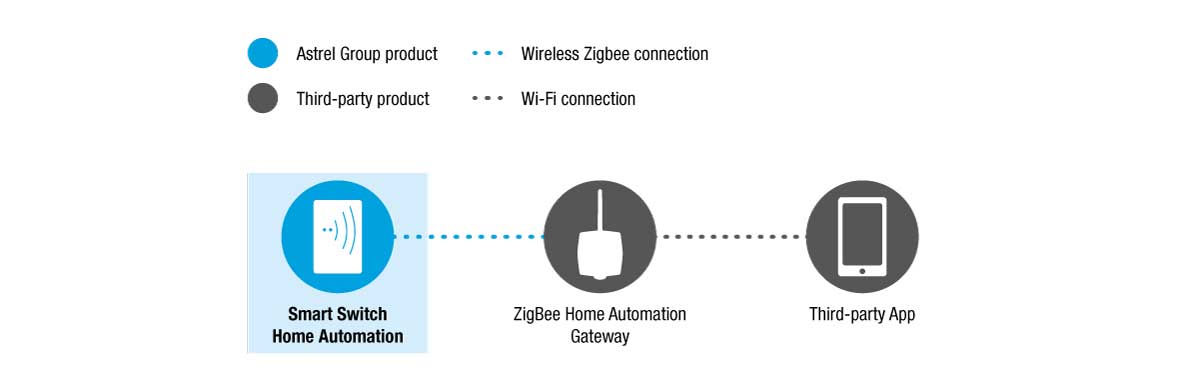

Home Automation version connection diagram
Models available
Image Code Description
ZR-SWITCH-xx ZR-SWITCH-M
ZR-SWITCH-HA
Wall mounted ZigBee wireless actuator – Modbus
Wall mounted ZigBee wireless actuator – Home Automation
Technical specifications
General specifications Ember EM3587 chip
Compatible with IEEE 802.15.4
Stack EmberZnet 5.3.1 (ZigBee PRO)
ZR-SWITCH-M: Modbus / RTU
ZR-SWITCH-HA: Home Automation 1.2
Radio specifications Frequency: 2405 MHz to 2480 MHz
Modulation: DSSS
Nominal transmission power: 2 mW (3 dBm)
Receiver sensitivity: -95 dBm
Antenna Internal antenna with 0 dB gain
Radio range: 30 m outdoor; 15 m indoor
Power supply 90 to 240 Vac; 1 W; 50 to 60 Hz
Power Max current 13 A; 3.0 kW electrical load (pure resistive)
Status display 1x LED indicator
Sampling / data transmission time 20 seconds (default)
Measurements Active power [W]
Active energy consumption [Wh]
Outlets Terminals for load control
Mounting Wall-fixing with screws
Ambient parameters Operating conditions: -0 to +50 °C; <80% R.H. n. c.
Storage conditions: -20 to +70 °C; <80% R.H. n. c.
Degree of protection IP30
Insulation Class I
Conformity Directives 2014/53/EU (RED) 2011/65/EU (RoHS) 2012/19/EU (WEEE) 1999/519/EC
ETSI EN 300 328; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 61000-6-2; EN 61000-6-3; EN 60669-2-1; EN 62479
Dimensions (L x H x D) 76 x 116 x 25 mm
Weight 130 g
