Project Description

Energy Meter 1~ ZigBee Modbus Print datasheet

ZigBee bidirectional wireless power meters with current transformer for single phase lines up to 15 kW
Main technical specifications
  • ZigBee bidirectional wireless power and energy meter
  • Max power measurement: 15 kW single phase
  • Split core current transformer included
  • Digital output for controlling an external relay
  • Router function within the ZigBee wireless network
Applications
  • Building automation and industrial control systems
  • Energy monitoring and management
Description

Wireless energy meter for measuring the power of a load / single phase line up to 15 kW using a split core current transformer (TA)

In industrial applications, the device can be used to monitor a production line or a lighting line inside or outside a section.

The device is fitted with a digital output for controlling an external, high power relay.

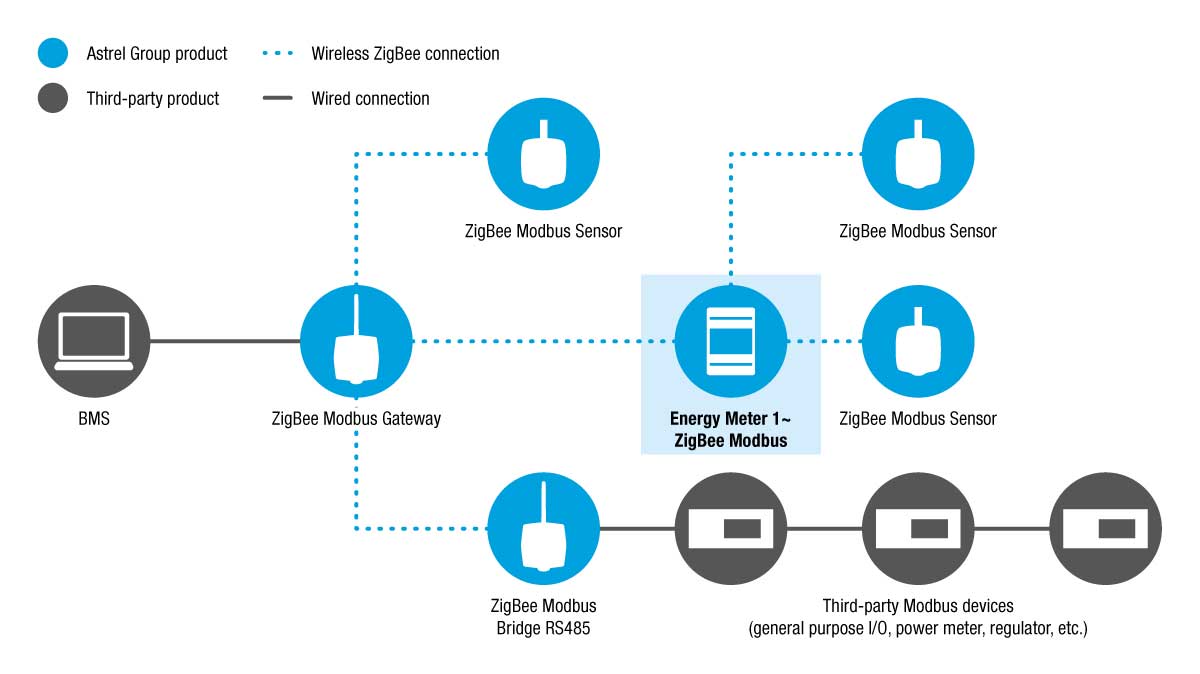

Thanks to continuous power, the device can also function as a ZigBee signal repeater and as a parent device for battery powered sensors.

Connection diagram
Models available
Image Code Description
ZR-HM.D-xx ZR-HM.D-M Energy Meter 1~  for one single phase line up to 15 kW – Modbus
Technical specifications
General specifications Chip Ember EM3587
Compatible with IEEE 802.15.4
Stack EmberZnet 5.3.1 (ZigBee PRO)
Modbus / RTU
Radio specifications Frequency: 2405 MHz to 2480 MHz
Modulation: DSSS
Nominal transmission power: 2 mW (3 dBm)
Receiver sensitivity: -95 dBm
Antenna Radio range: 50 m outdoor; 20 m indoor
Power supply 90 to 250 Vac; 1 W; 50 to 60 Hz
Max current 15 kW
Status display 1x LED indicator
Sampling / data transmission time 20 seconds (default)
Measurements Bidirectional active power [W]
Bidirectional energy [Wh]
Connections Screw terminals (5.08 mm pitch)
Inputs Input for measurement with TA
Digital outputs Auxiliary relay, 230 Vac 10A max (pure resistive)
Current transformer (included) 100 / 33 mA; internal diameter 15 mm
Mounting DIN rail
Ambient parameters Operating conditions: -10 to +60 °C; <80% R.H. n. c.
Storage conditions: -20 to +70 °C; <80% R.H. n. c.
Degree of protection IP20
Insulation Class II
Conformity Directives 2014/53/EU (RED) 2011/65/EU (RoHS) 2012/19/EU (WEEE) 1999/519/EC
ETSI EN 300 328; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 61326-1; EN 61010-1; EN 62479
Dimensions (L x H x D) 53.5 x 110 x 62 mm
Weight 155 g
Mechanical drawings
