ZigBee Modbus and HA Radio repeaters Print datasheet

Radio signal repeaters for extending the range of the ZigBee network
Main technical specifications
  • Routing functionality
  • External antenna
Available protocols
  • Modbus
  • Home Automation
Applications
  • Home & building automation systems
  • Energy monitoring and management
Description

ZigBee radio repeater for extending the range of wireless devices in the event of weak signals caused by obstacles or long distances.

Thanks to continuous power, the device can also function as a parent for battery powered sensors.

The device requires no connections other than the power connection.

Modbus version connection diagram

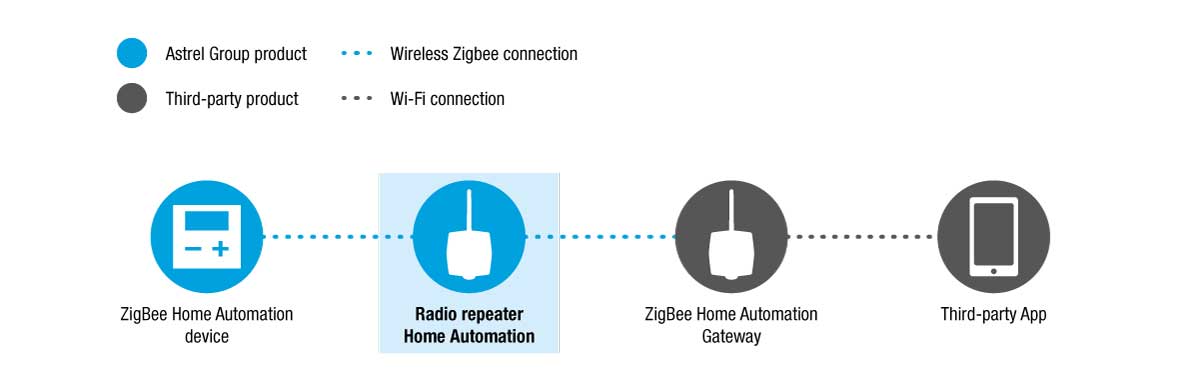

Home Automation version connection diagram
Models available
Image Code Description
ZR-REP-E230x ZR-REP-E230M ZigBee Modbus Radio Repeater
ZR-REP-E230x ZR-REP-E230HA ZigBee Home Automation Radio Repeater
Technical specifications
General specifications Chip Ember EM3587
Compatible IEEE 802.15.4
Stack EmberZnet 5.3.1 (ZigBee PRO)
Modbus / RTU
Home Automation 1.2
Radio specifications 2405 MHz ÷ 2480 MHz
DSSS Modulation
Nominal transmission power: +10 dBm
Receiver sensitivity: -92 dBm
Antenna External antenna with 5 dB gain
Radio range: 100 m outdoor; 30 m indoor
Antenna connector RP-SMA connector
Power supply 90 to 250 Vac; 50 to 60 Hz
Status display 3 x indicator LEDs
Connections Italian standard plug with 2 m cable
Mounting Wall-fixing with screws
Ambient parameters Operating conditions: -10 to +60 °C; <80% R.H. n. c.
Storage conditions: -20 to +70 °C; <80% R.H. n. c.
Degree of protection IP51
Insulation Class II
Conformity ETSI EN 300 328; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 61000-6-2; EN 61000-6-3; EN 60950-1; EN 62479
Directives 2014/53/EU (RED) 2011/65/EU (RoHS) 2012/19/EU (WEEE) 1999/519/EC
Dimensions (L x H x D) 123 x 100 x 42 mm (without antenna)
Weight 260 g
Mechanical drawings
